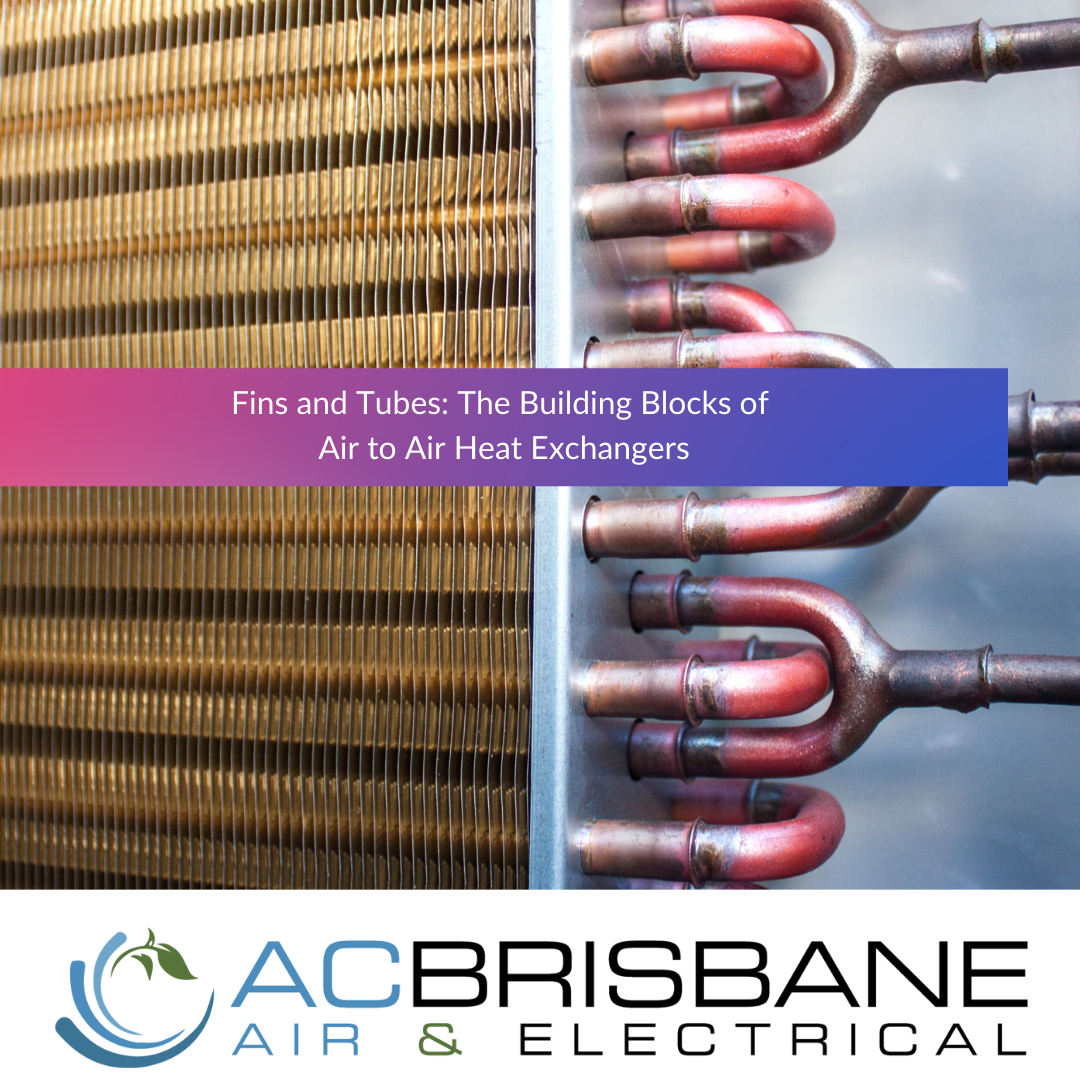

An air to air heat exchanger is essentially a device that is used to transfer heat from one stream of air to another. It is typically made up of a series of fins or tubes that are arranged in a specific pattern to maximize the surface area for heat transfer. The fins or tubes are typically made from a material that is good at conducting heat, such as aluminum, copper, or steel.
There are two main types of air to air heat exchangers: cross flow and counterflow. In a cross flow heat exchanger, the two streams of air flow in opposite directions and pass each other at a perpendicular angle. This type of heat exchanger is typically used in residential and commercial air conditioning systems. In a counterflow heat exchanger, the two streams of air flow in the same direction, but in opposite directions. This type of heat exchanger is typically used in industrial and commercial refrigeration systems.
The way the heat exchanger works is by using the fins or tubes to transfer heat from one stream of air to the other. The air that is being heated or cooled is passed through the heat exchanger, and as it comes into contact with the fins or tubes, heat is transferred from the air to the fins or tubes. The heat is then transferred from the fins or tubes to the other stream of air.
In air conditioning systems, the air to air heat exchanger is used to transfer heat from the inside of a building to the outside. The inside air is cooled by passing it through the heat exchanger, where it comes into contact with the fins or tubes. The heat is transferred from the inside air to the fins or tubes, and then to the outside air. This process cools the inside air, while also warming the outside air.
In refrigeration systems, the air to air heat exchanger is used to transfer heat from the inside of a refrigeration unit to the outside. The inside air is cooled by passing it through the heat exchanger, where it comes into contact with the fins or tubes. The heat is transferred from the inside air to the fins or tubes, and then to the outside air. This process cools the inside air, while also warming the outside air.
In conclusion, air to air heat exchangers are an important component in air conditioning and refrigeration systems. They are designed to transfer heat between two streams of air, allowing for efficient cooling or heating of a space. The two main types of air to air heat exchangers are cross flow and counterflow, and the way the heat exchanger works is by using the fins or tubes to transfer heat from one stream of air to the other. Understanding the inner workings of air to air heat exchangers can help us to better understand and maintain air conditioning and refrigeration systems.
